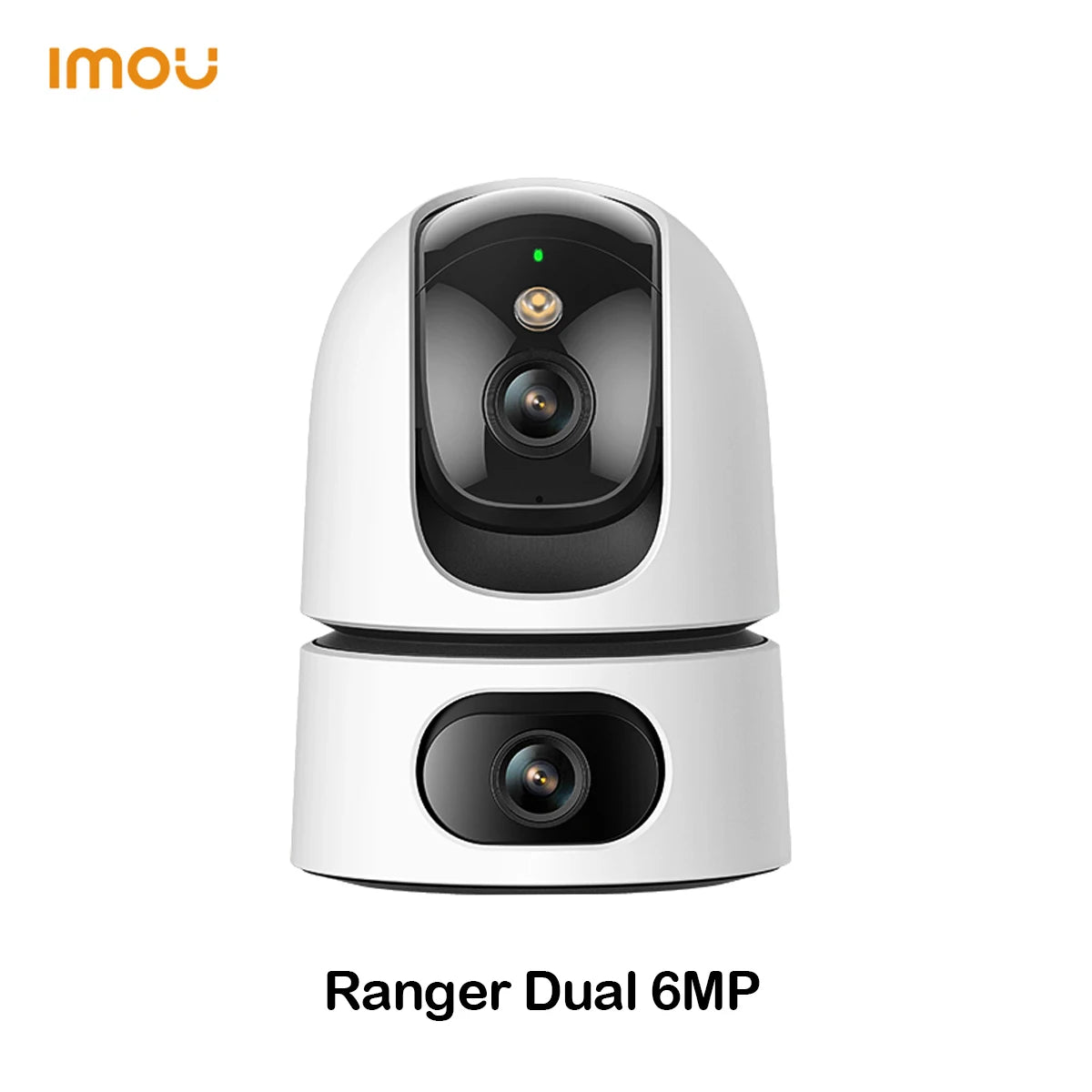

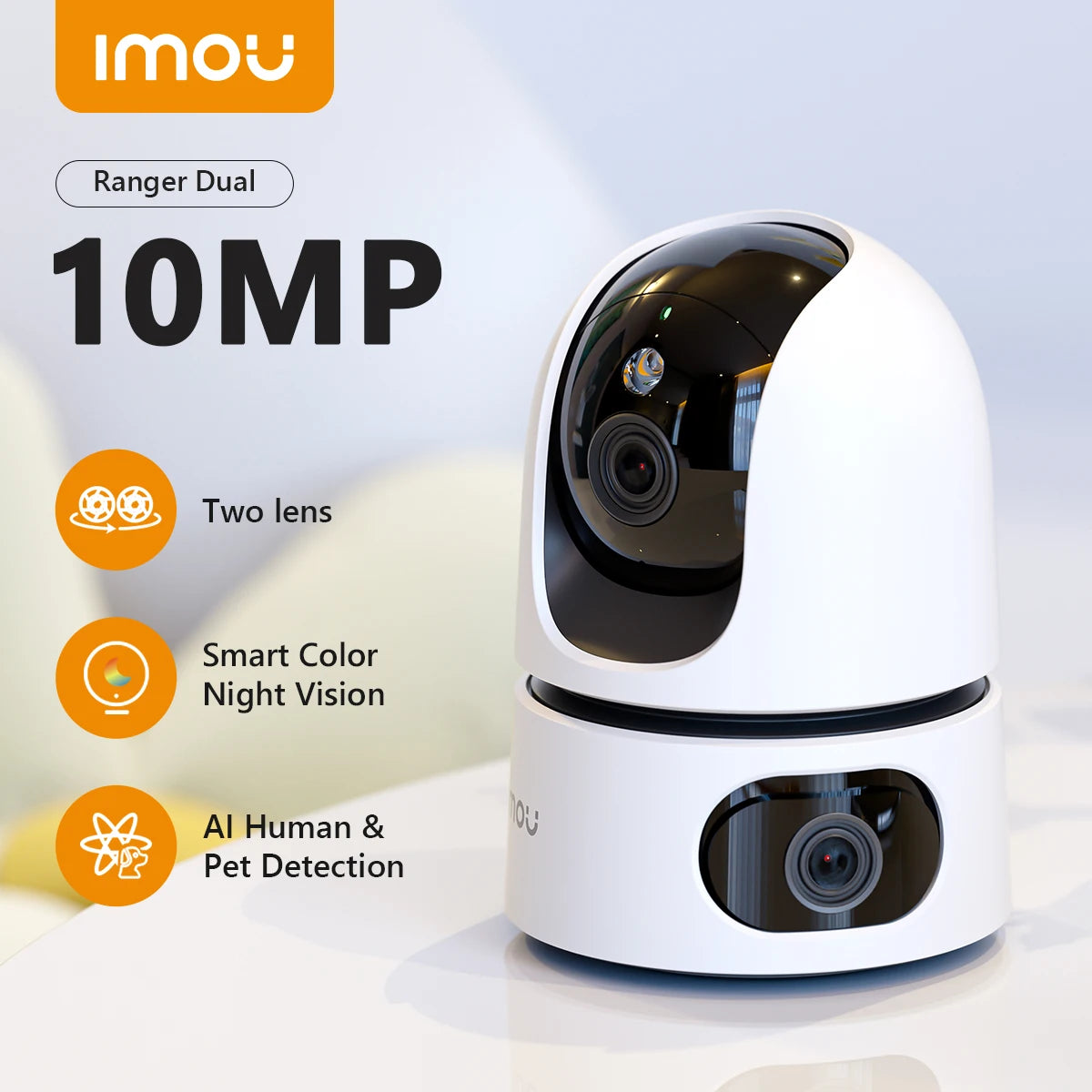

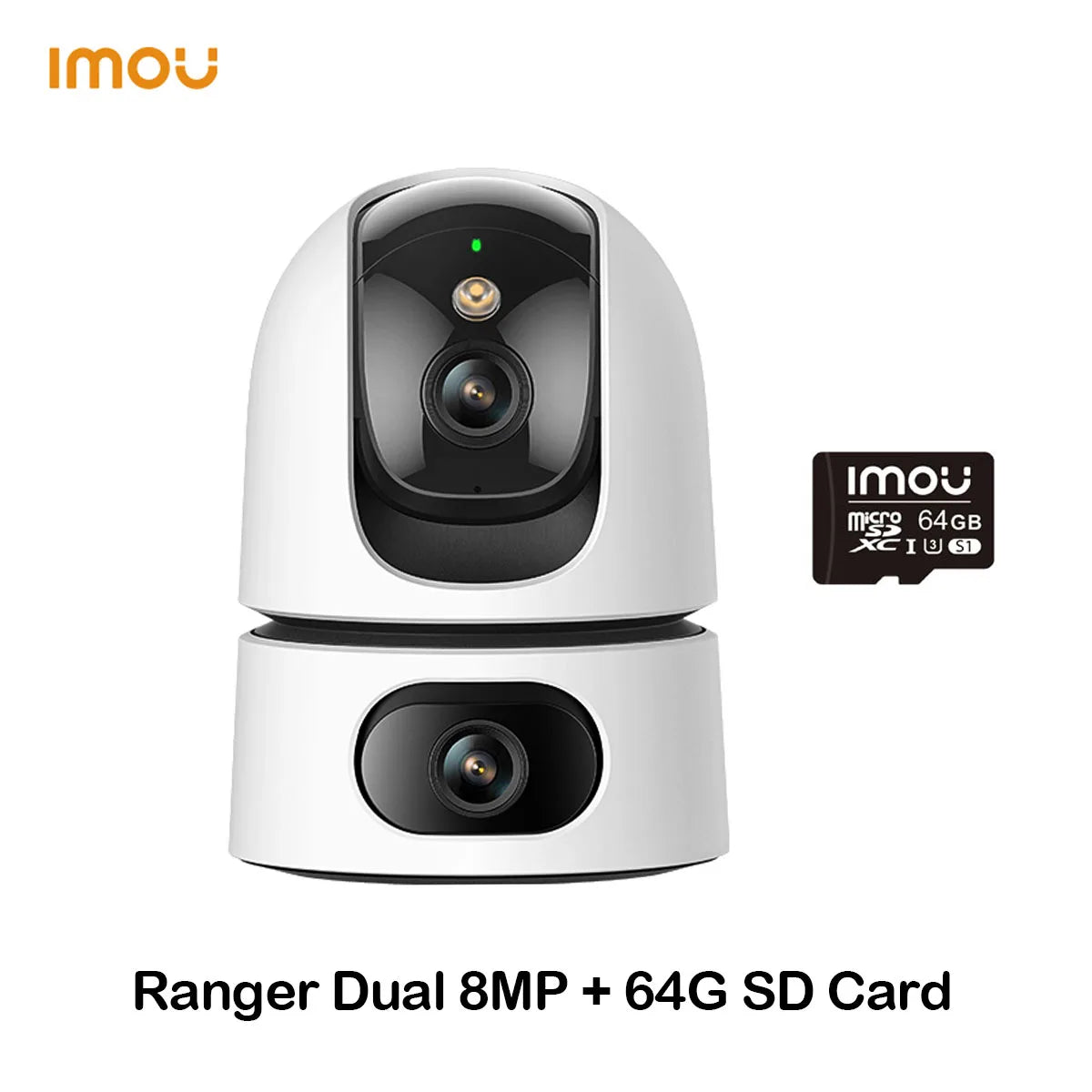

🛡️ 360° Panoramic Indoor Security Camera with Dual-Lens & Smart Detection
📦 Product Specifications
-
Brand: IMOU
-
Model: Ranger Dual
-
Color: White
-
Shell Material: Durable Plastic
-
Style: Pan-Tilt (PT) Indoor Camera
-
Weight: 225g (0.51 lb)
-
Dimensions: 82.2 × 82.2 × 115.4 mm (3.2 × 3.2 × 4.5 in)
🎥 Camera & Imaging
-
Image Sensor: CMOS (Omnivision)
-
Resolution Options:
-
3MP + 3MP Wide View
-
3MP + 5MP Wide View
-
5MP + 5MP Wide View
-
-
Maximum Resolution: 8MP (3840x2160)
-
Lens Configuration: Dual-Lens
-
Lens Size: 3.6mm
-
Digital Zoom: 8x
-
Field of View (Fixed Lens): 84° (H), 45° (V), 101° (D)
-
Field of View (Pan & Tilt Lens): 87° (H), 47° (V), 105° (D)
-
-
Pan & Tilt Range:
-
Horizontal (Pan): 0°–355°
-
Vertical (Tilt): -10°–180°
-
-
Frame Rate: Up to 15 FPS
-
Viewing Angle: 360° Panoramic Coverage
🌙 Night Vision & Lighting
-
Night Vision: Dual Light Full-Color Night Vision
-
Infrared Range: Up to 15 meters (49 ft)
-
Color Night Vision: Yes
-
Smart Full-Color Night Vision: Automatically switches based on ambient light
🧠 Smart Features
-
AI Detection:
-
Human Detection
-
Pet Detection
-
Abnormal Sound Alerts
-
-
Motion Detection: Supported
-
Configurable Motion Zones: Yes
-
Alarm Actions:
-
Local Alarm
-
FTP Photo Upload
-
Mobile App Notification
-
📶 Connectivity & Storage
-
Connection Type: WiFi (2.4GHz only, Wi-Fi 6 supported)
-
Ethernet Port: 1 × 100Mbps
-
Video Compression: H.264 / H.265
-
Audio: Two-Way Audio (Built-in Microphone and Speaker)
-
Storage Options:
-
MicroSD Card Slot (Supports up to 256GB – not included)
-
Cloud Storage available via Imou Life app
-
-
Internal Storage: None
-
App Name: Imou Life
-
Smart Platform Compatibility:
-
Alexa
-
Other platforms (not specified)
-
🔌 Power & Environment
-
Power Supply: DC 5V/1A (via mains electricity)
-
Power Consumption:
-
Typical: <3.5W
-
Max: <5.65W
-
-
Operating Temperature: -10°C to +45°C (14°F to 113°F)
-
Humidity: Less than 95% RH (non-condensing)
-
Installation: Standard indoor setup
🔒 Additional Features
-
Digital Zoom: 8x
-
Vandal-Proof Design: Yes
-
Onvif Protocol Support: Yes
-
Customizable Regions: Yes
-
Operating Systems Supported:
-
Mobile: Android / iOS
-
Desktop: Windows 7 / Windows 10
-
🌟 Key Highlights
-
📸 Dual-Lens Design: Get a broader perspective with wide-angle dual lenses and full-room coverage.
-
🧠 AI-Powered Detection: Smart recognition for pets, humans, and unusual sounds.
-
🌓 Full-Color Night Vision: See every detail clearly, even in complete darkness.
-
📱 Remote Monitoring: View live feeds, playback, and control the camera via the Imou Life app.
-
🔄 360° Viewing: Pan, tilt, and zoom capabilities ensure no blind spots in your indoor security.
Two lens resolution total 8MP | Smart color Night Vision | AI Human & Pet Detection | Two-way Audio
Abnormal Sound Alarm | Smart Tracking | Privacy Mode |Supports Wi-Fi 6 Connection
Note: Support period of firmware is at least 2 years, the day of firmware update cessation is 2027/12/31. It means that from then we'll no longer maintain any firmware updates (including security updates) for them, and may no longer respond to security vulnerability reports for such products either. Meanwhile, we'll continue to provide after-sales service for any hardware issues with the product, as long as it is still supported by the warranty policy.

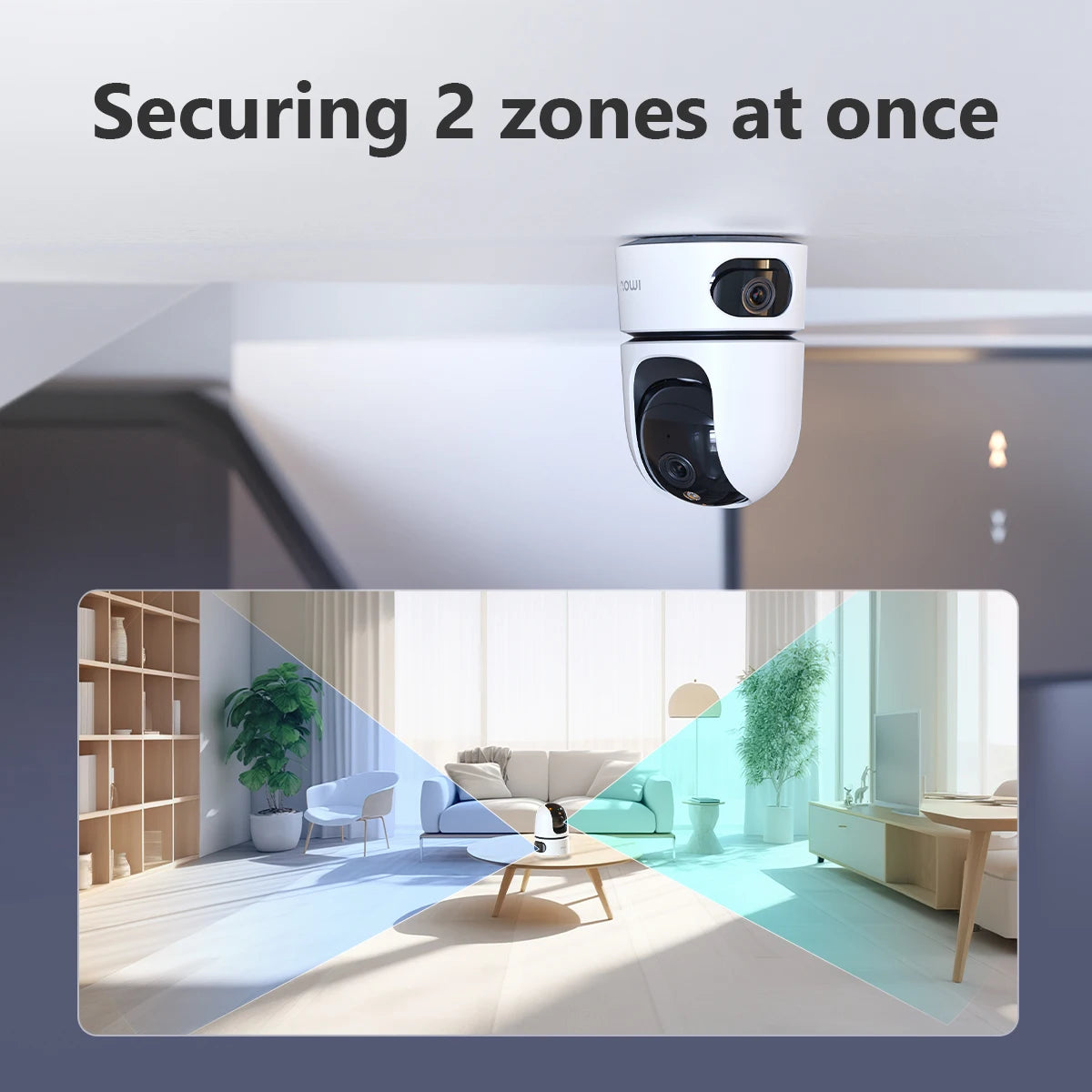

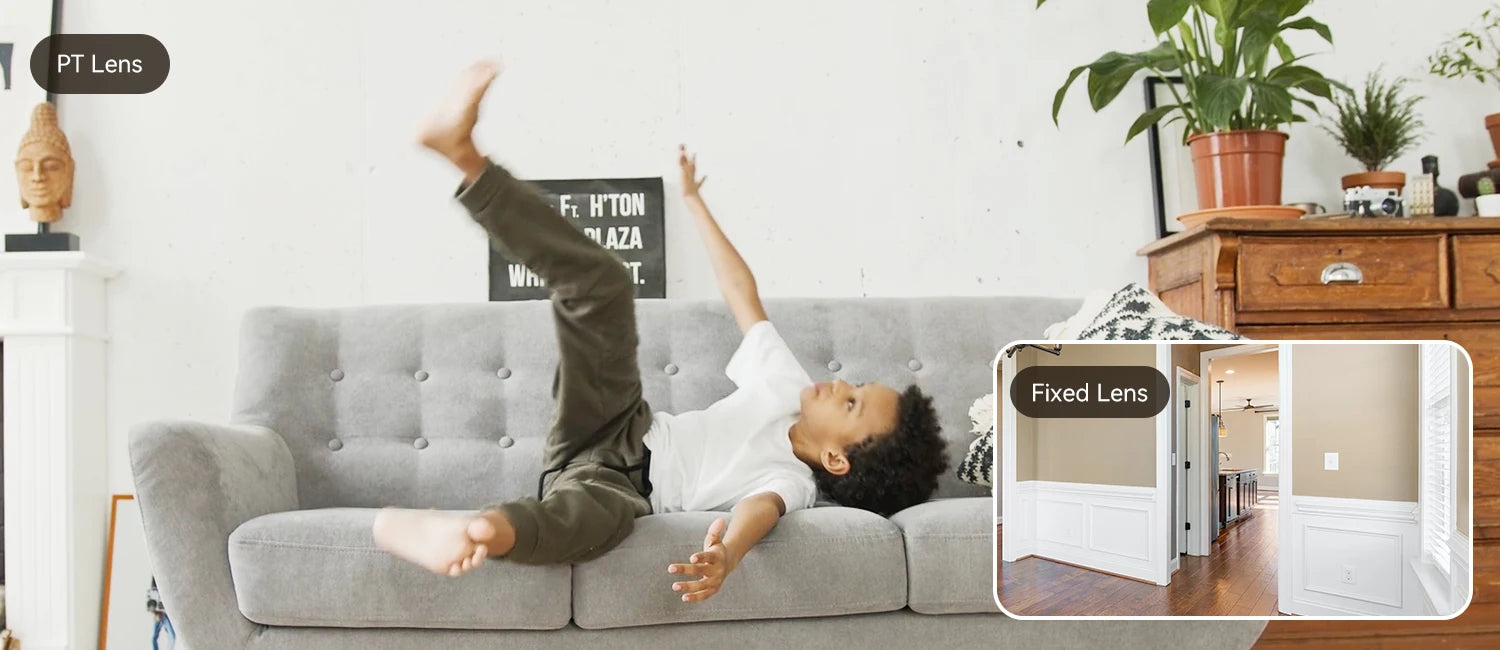

Securing 2 zones at once
In addition to the normal PTZ lens, the Ranger Dual has a fixed lens on the bottom that allows you to monitor two areas at once.
Multiple lens combinations for all your needs
▶ 3MP Fixed Lens + 3MP Pan & Tilt Lens
▶ 3MP Fixed Lens + 5MP Pan & Tilt Lens
▶ 5MP Fixed Lens + 5MP Pan & Tilt Lens
Ranger Dual offers 3+3MP , 3+5MP ,5+5MP lens combination options, provide you with clearer and wider view images.

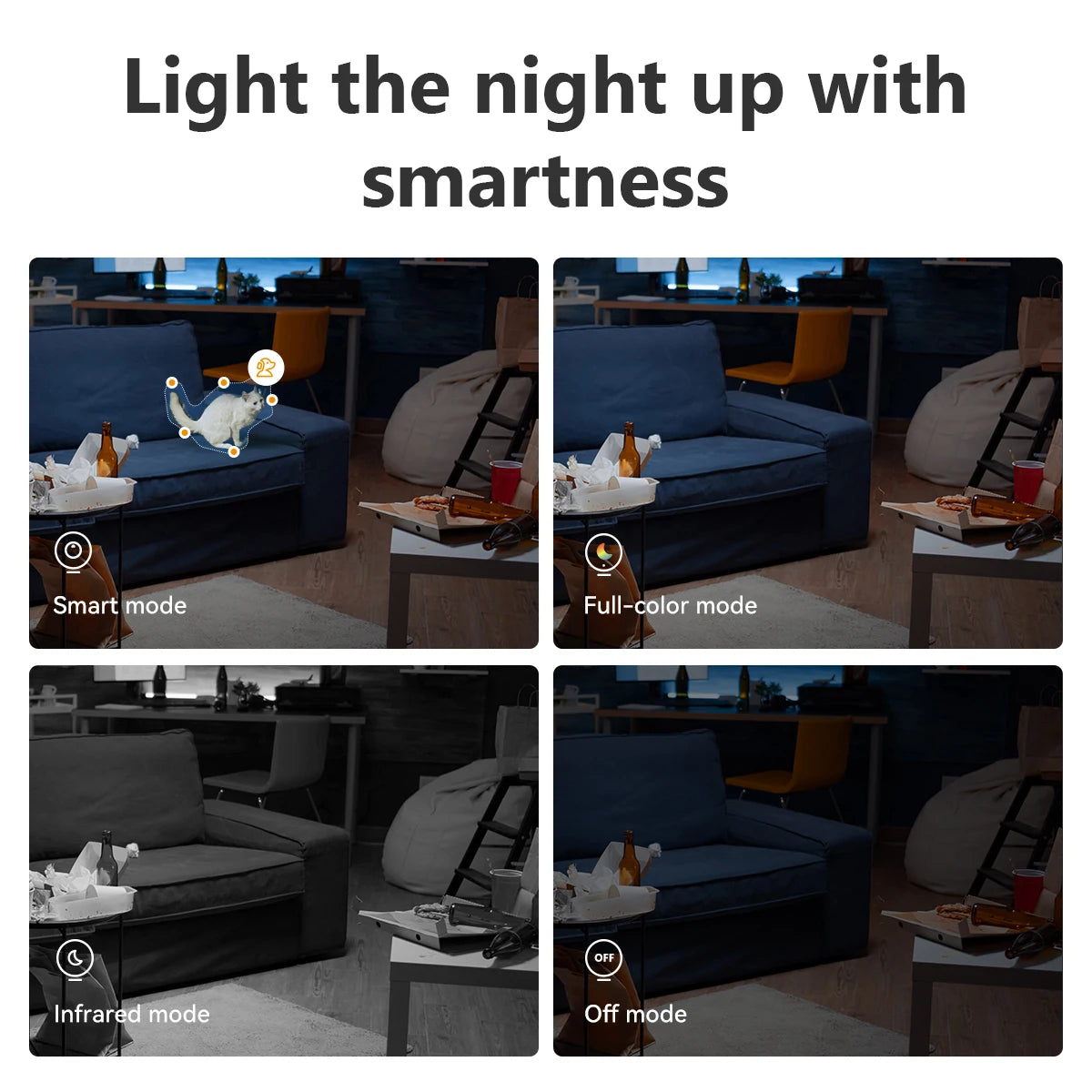

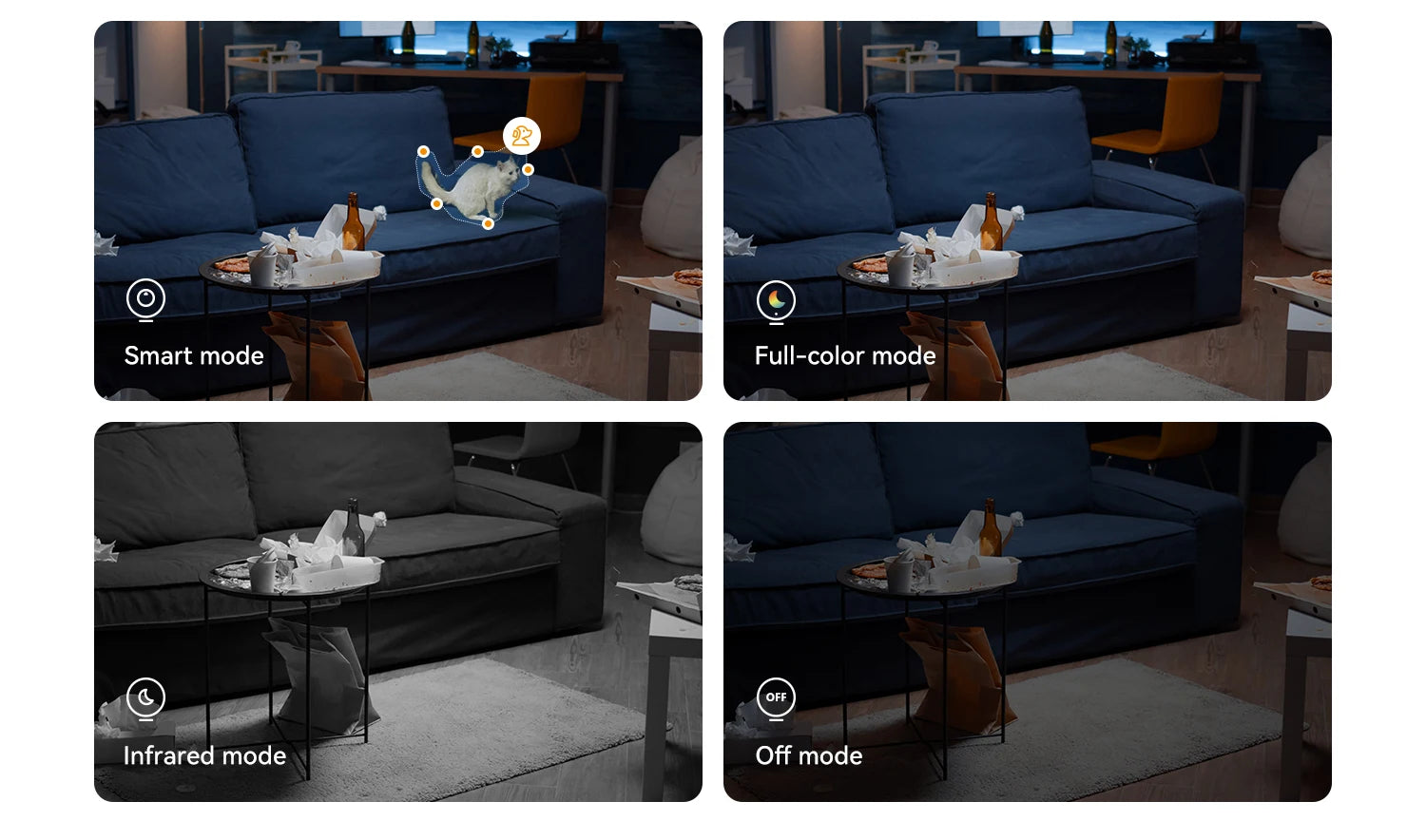

Light the night up with smartness
Ranger Dual can adjust different night vision modes according to your needs, whether you want the night vision to remain in full color all the time or want to turn on full color only when there is an event to save energy, it can always satisfy you.

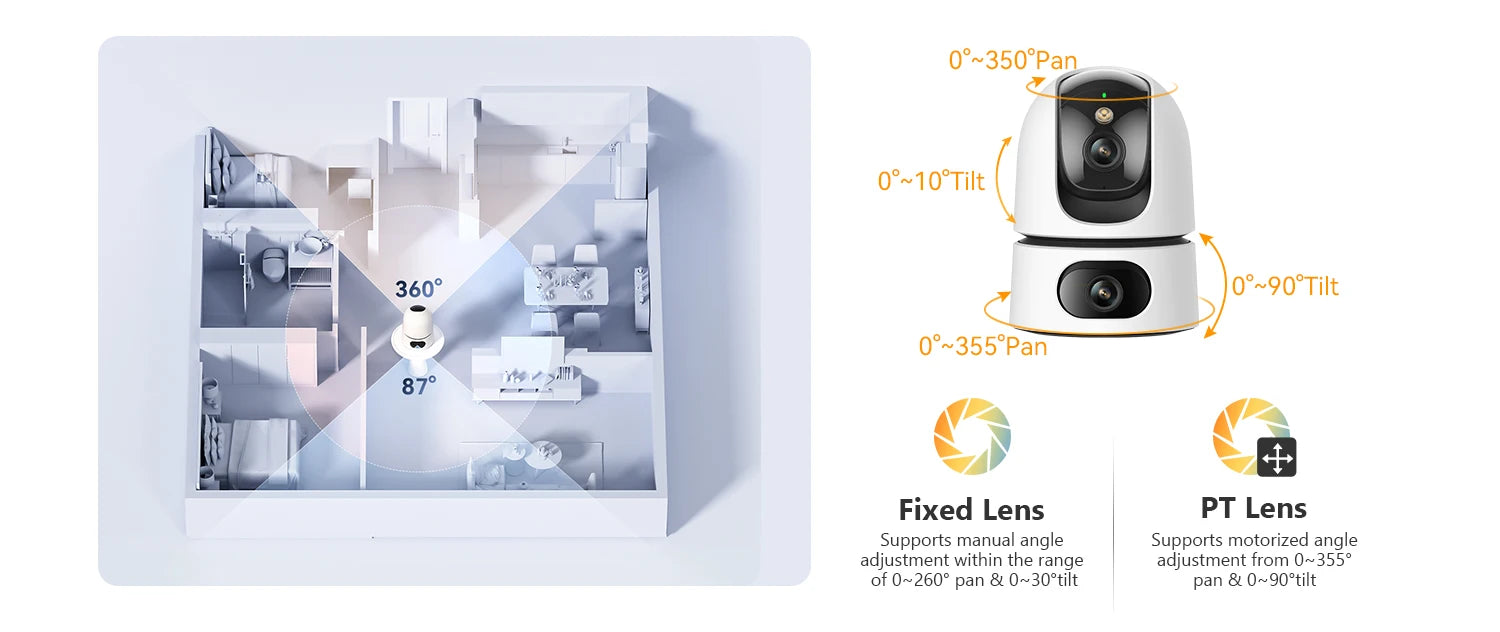

The adjustable dual-lens gives you 360° protection
The Ranger Dual's pan-tilt lens supports 0°-355° horizontal rotation and 0°-90° vertical rotation, while the fixed lens supports 0°-350° horizontal rotation and 0°-10° vertical rotation to protect your home 360°.
Precise human & pet detection
With the support of IMOU SENSE™, the newly upgraded AI can effectively improve the accuracy of detecting people and pets, and can intelligently track the target; when there is an event triggered, in addition to pushing information to the user's phone, the device itself will also alarm.

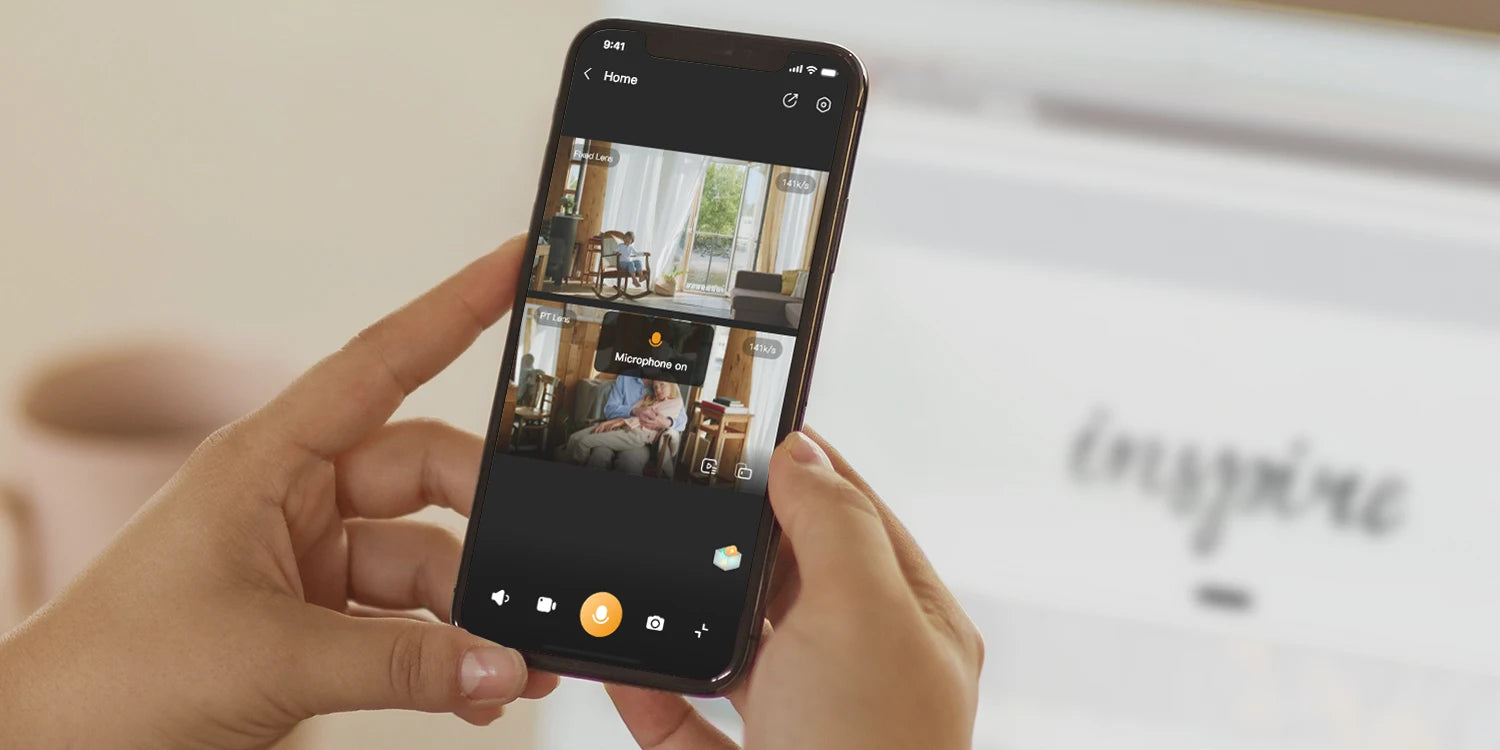

Two-way Audio, Connect your home from anywhere
A built-in speaker and a microphone with the echo cancellation feature allow you to interact with pets and family from anywhere.
Protect according to your preferences
Favorite Point Setting | Customizable detection zone
Customizable Alarm Sound | Protection Scheduling
Deter unwelcome visitors
Ranger Dual keeps an eye on your house, when someone breaks in, the 110dB siren will turn on to deter the unwelcome visitor.
Protect your privacy with just a touch
The Ranger Dual detects unusually high decibel sounds such as babies crying and glasses breaking, so you can be in control of your home wherever you are.

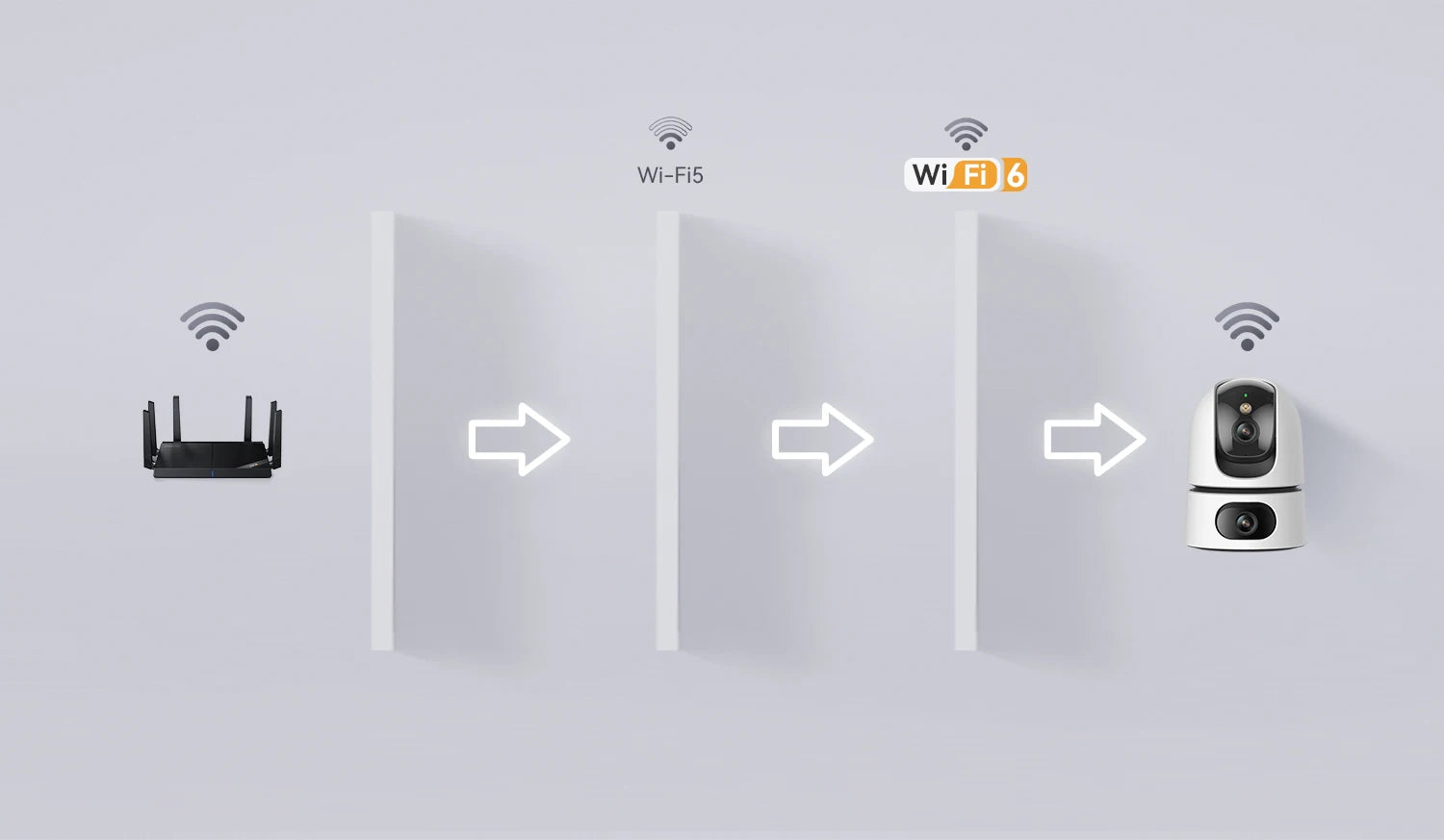

Put your camera further with Wi-Fi 6
Ranger Dual supports the latest Wi-Fi 6 standard with higher data transfer rates and better wall penetration, allowing your security range wider.
Work with Smart Home Platform
Imou life/Alexa

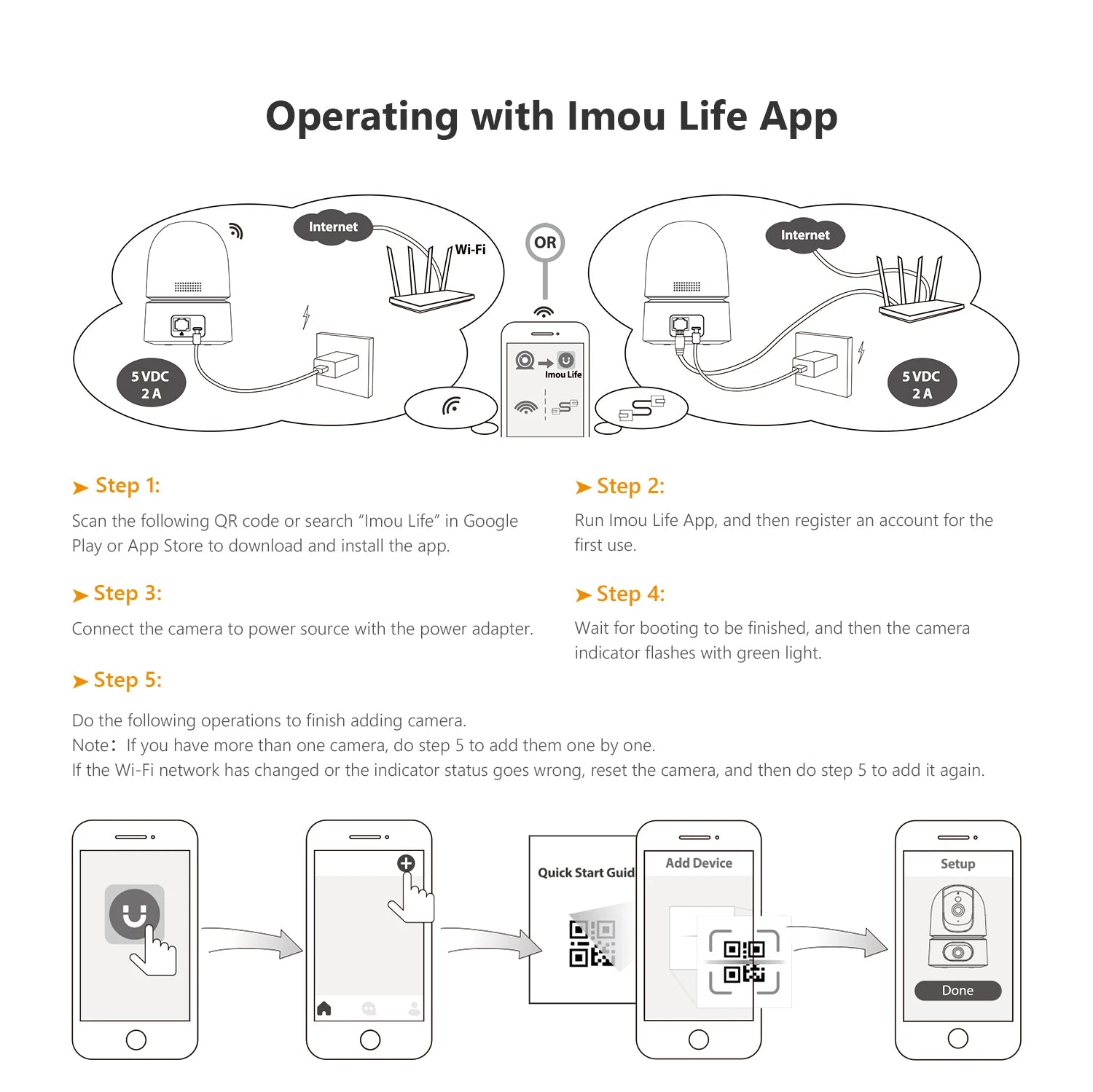

Operating with Imou Life App
▶ Step 1
Scan the following QR code or search “Imou Life” in Google Play or App Store to download and install the app.
▶ Step 2
Run Imou Life App, and then register an account for the first use.
▶ Step 3
Connect the camera to power source with the power adapter.
▶ Step 4
Wait for booting to be finished, and then the camera indicator flashes with green light.
▶ Step 5
Do the following operations to finish adding camera.
Note：
If you have more than one camera, do step 5 to add them one by one.
②If the Wi-Fi network has changed or the indicator status goes wrong, reset the camera, and then do step 5 to add it again.

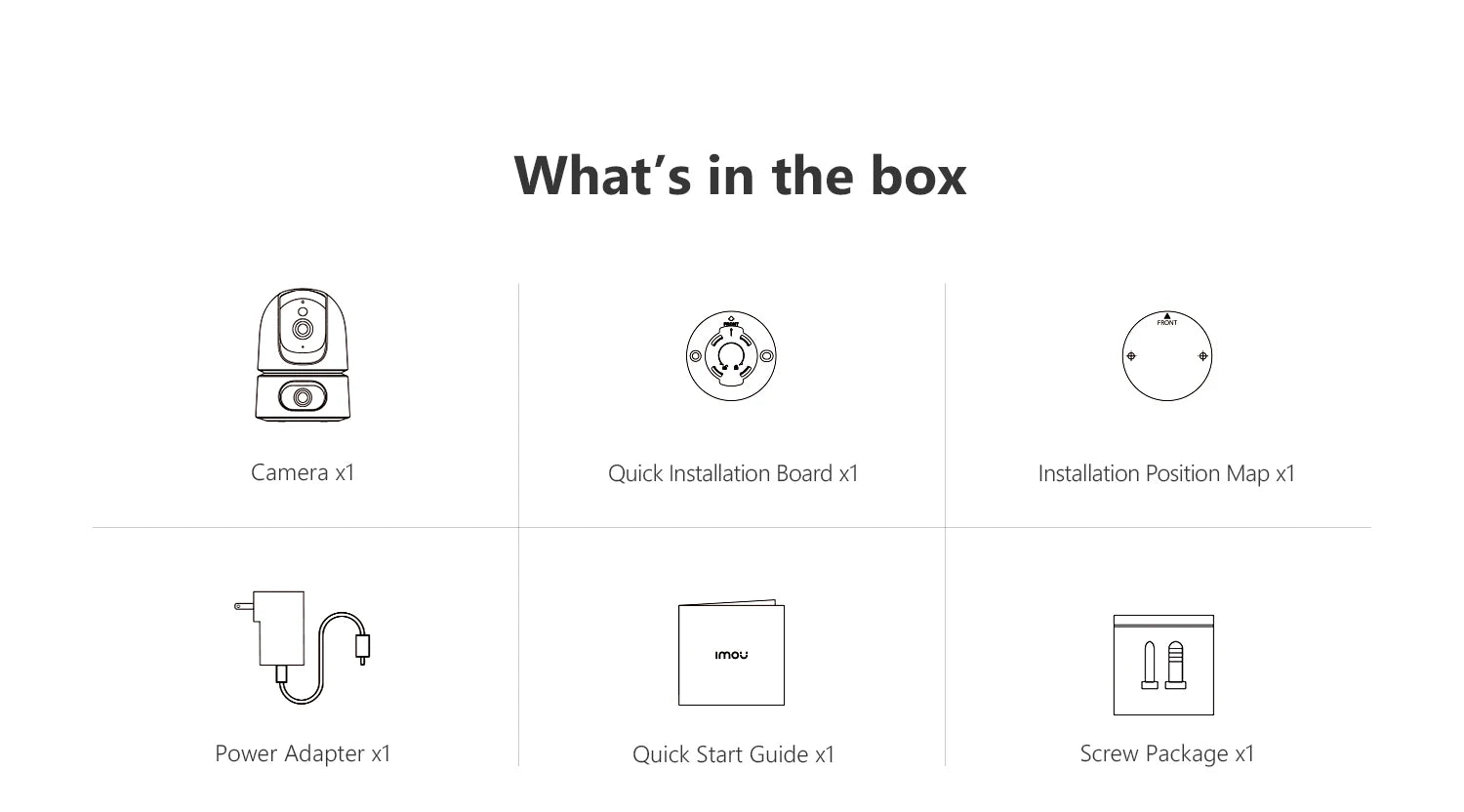

What's in the box?
- 1x Camera
- 1x Quick Installation Board
- 1x Installation Position Map
- 1x Power Adapter
- 1x Quick Start Guide
- 1x Screw Package

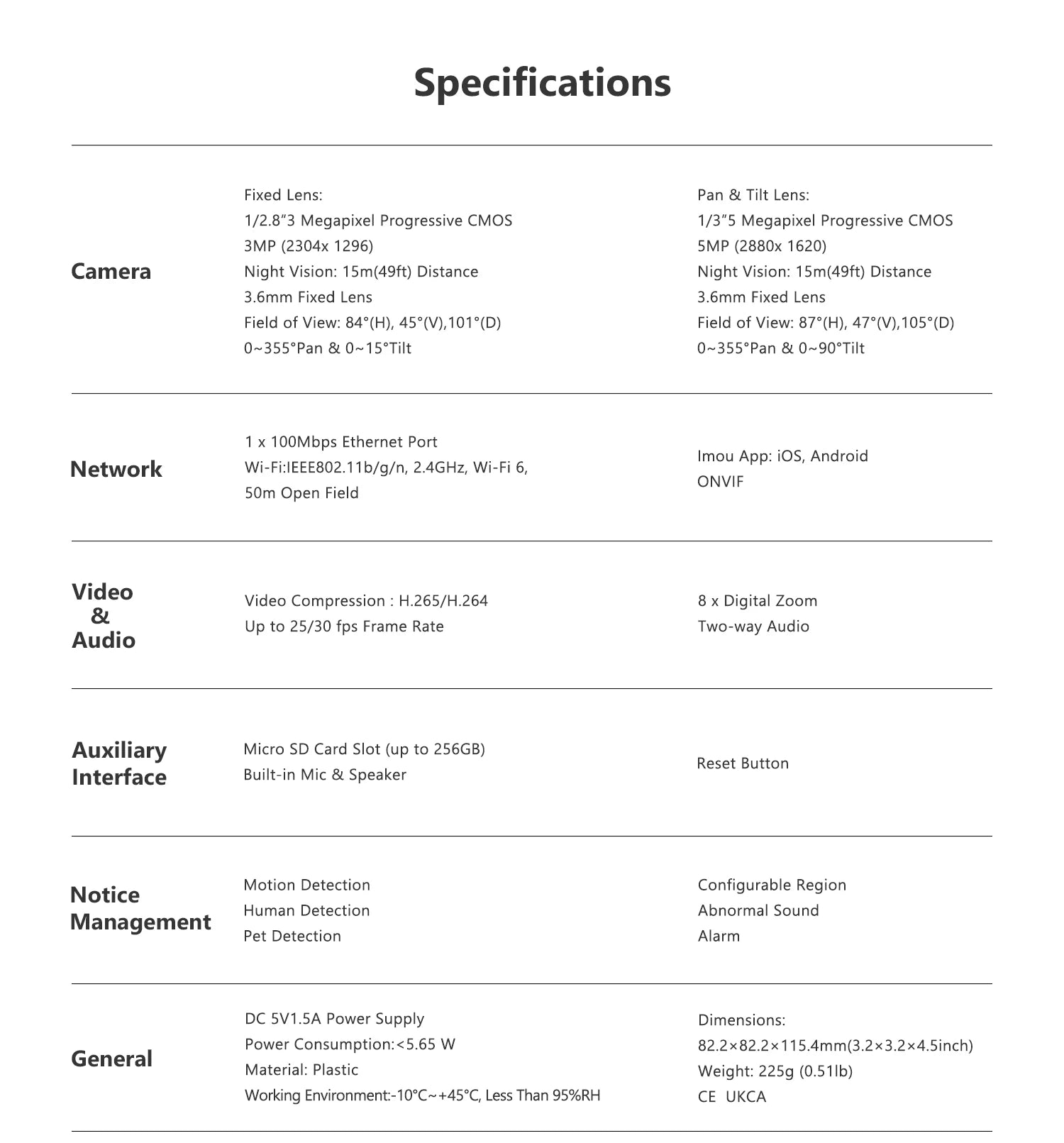

Specifications

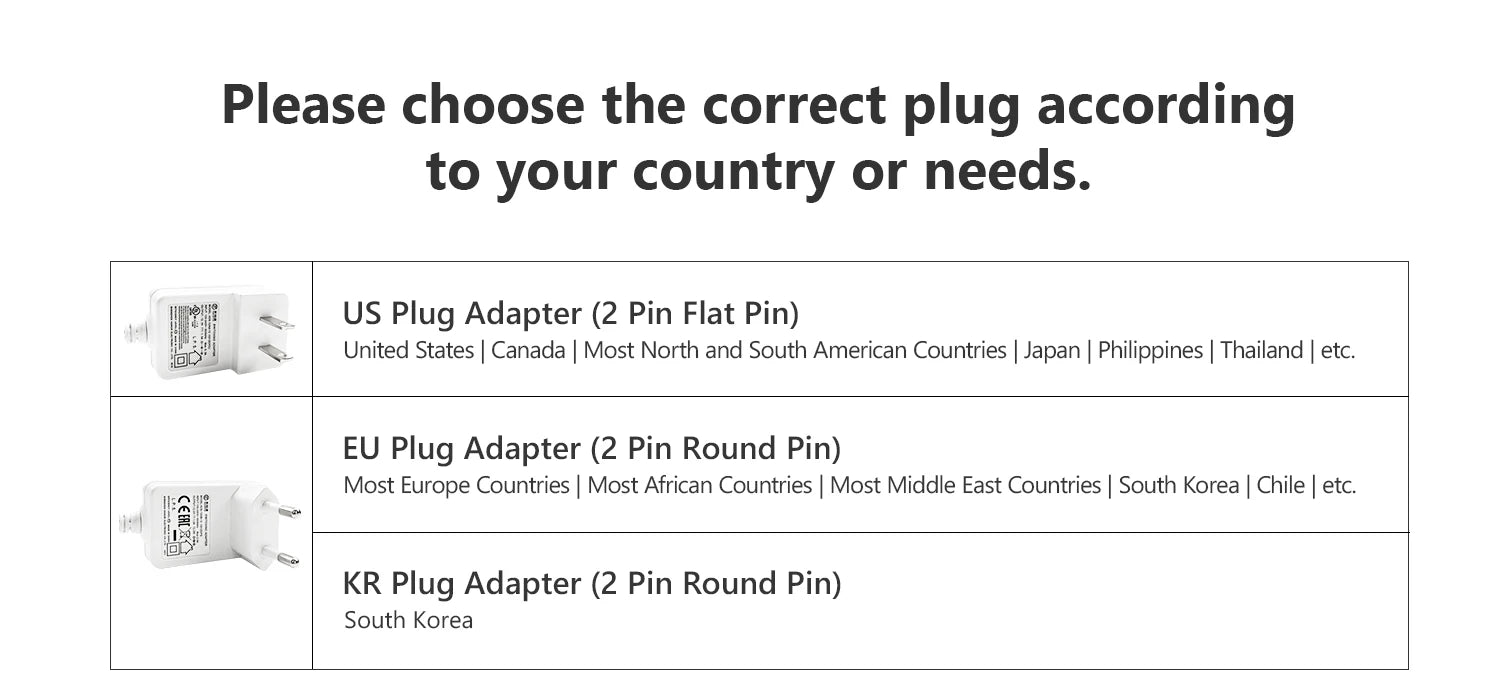

Please choose the correct plug according to your country or needs.
♦EU Plug Adapter (2 Pin Round Pin)
Most Europe Countries | Most African Countries | Most Middle East Countries | South Korea | Chile | etc.
♦ US Plug Adapter (2 Pin Flat Pin)
United States | Canada | Most North and South American Countries | Japan | Philippines | Thailand | etc.

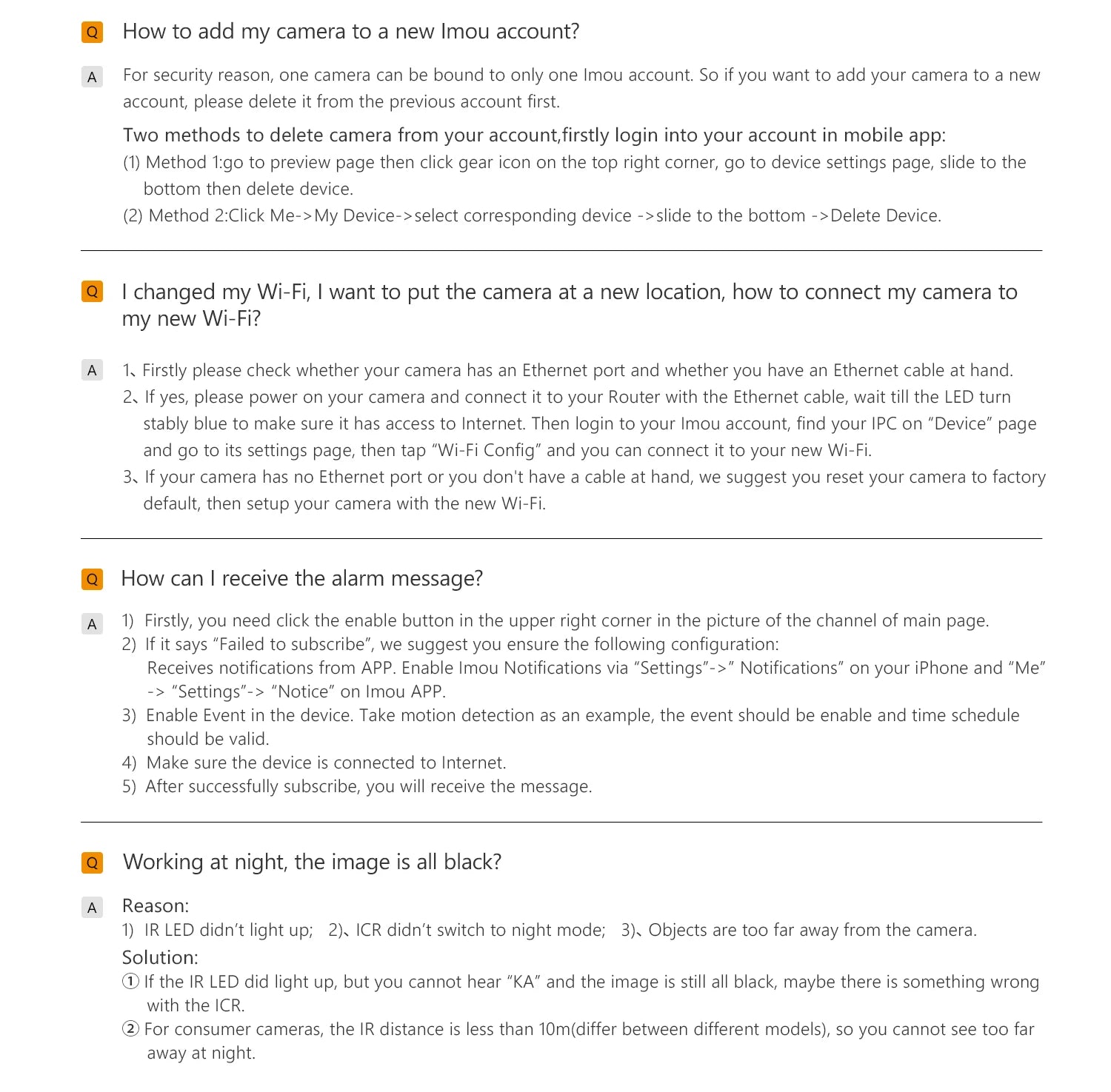

Q&A area
